Details

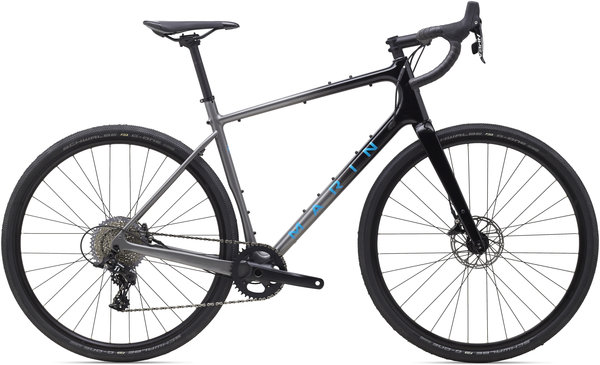

The Headlands takes what we have learned with the alloy Gestalt X line and brings the spirit to an all-new, full carbon fiber frameset. Modern geometry, generous tire clearance, and sublime ride quality all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.
The Headlands has a unidirectional carbon fiber frame designed to meet the demands of modern gravel and endurance riders and racers, featuring large tire clearance, a 142x12mm rear thru-axle, and multiple frame eyelets for customized hydration and framebag needs. The Headlands was designed with clearance for up to 700x45c or 650Bx50 tires to handle even the roughest "roads." To up the adventure game another notch, the frame features a seattube port for internal dropper routing. And, a removable seat stay brace makes it super easy to add fenders for foul weather riding and commuting while maintaining a clean, smooth look when you don’t need the coverage.
- Unidirectional Carbon Beyond Road frame and full carbon fork
- SRAM Apex 1x11 drivetrain
- SRAM Apex Hydraulic Disc brakes
- Marin Aluminum Double Wall rims w/Schwalbe G-One Performance 700x40c tires
Specs
Frame | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
---|---|
Fork | Marin Full Carbon w/ Taper Steerer, Flat-Mount Disc, Fender Eyelets |
Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
Axles |
Front: 12 x 100mm thru-axle Rear: 12 x 142mm thru-axle |
Wheels/Rims | Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible |
Hubs |
Front: Forged Aluminum Alloy, 6-Bolt Disc, 32H Rear: Forged Aluminum Alloy, XD Driver, 6-Bolt Disc, 32H |
Spokes | 14g Black Stainless Steel |
Tires | Schwalbe G-One Performance, 700x40c, Folding Bead |
Crankset | Forged Alloy 1x11, Hollow CrMo Spindle |
Chainrings | Narrow-Wide 40T |
Bottom Bracket | External Sealed Cartridge Bearings |
Chain | KMC X11 |
Front Derailleur | SRAM Apex 1x11-Speed |
Cassette/Rear Cogs | SunRace 11-Speed XD, 10-42T |
Shifters | SRAM Apex 1x11-Speed |
Handlebars | Marin Butted Alloy, Compact 12º Flared Drop, Flat Top |
Tape/Grips | Marin Shock Absorbing Tape |
Stem | Marin 3D Forged Alloy |
Brake Levers | SRAM Apex 1 DoubleTap |
Brakes | SRAM Apex Hydraulic Disc Disc, 160mm Rotors |
Pedals | Commute Platform |
Saddle | Marin Beyond Road Concept |
Seat Post | Marin Alloy, 27.2mm |
* Subject to change without notice.
Videos
2020 Marin Headlands
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Charcoal/Black/Cyan / 49cm | 843346106810 | 730151006 | |
Gloss Charcoal/Black/Cyan / 52cm | 843346102898 | 730151001 | |
Gloss Charcoal/Black/Cyan / 54cm | 843346102904 | 730151002 | 210000010225 |
Gloss Charcoal/Black/Cyan / 56cm | 843346102911 | 730151003 | 210000010227 |
Gloss Charcoal/Black/Cyan / 58cm | 843346102928 | 730151004 | 210000010229 |
Gloss Charcoal/Black/Cyan / 60cm | 843346102935 | 730151005 | 210000010231 |
