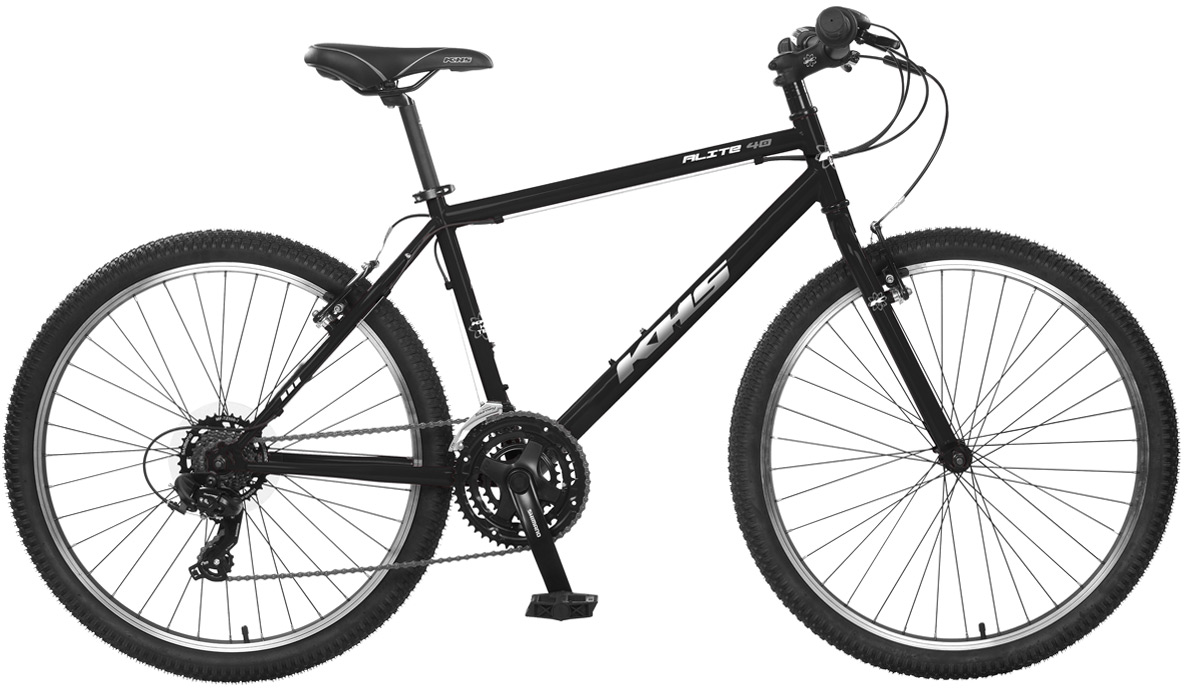

KHS Alite 40
This item is currently not available.
Details
Mountain bikes are just that, a bike to take to off road into the mountains. These bikes typically have suspension forks and/or rear suspension. KHS makes Mountain bikes that give you a comfortable fit to help you be able to get and ride all day long.
| X-Small/12 | Small/15 | Medium/18 | Large/23 | |
|---|---|---|---|---|
| s/t c-t | 305/12 | 381/15 | 432/17 | 483/19 |
| h/t° | 70° | 71° | 71° | 71° |
| s/t° | 73° | 73° | 73° | 73° |
| t/t effectv | 526/20.7 | 552/21.7 | 572/22.5 | 592/23.2 |
| c/s | 425/16.7 | 430/16.9 | 430/16.9 | 430/16.9 |
| BB Height | 292/11.5 | 302/11.9 | 302/11.9 | 302/11.9 |
| s.o. | 665/26.2 | 713/28.1 | 746/29.4 | 779/30.7 |
| h/t L | 110/4.3 | 115/4.5 | 130/5.1 | 145/5.7 |
| Stack | 507/20 | 506/19.9 | 520/20.5 | 534/21 |
| Reach | 371/14.6 | 397/15.6 | 413/16.3 | 429/16.9 |
Specs
| Frame | TIG-welded Hi-tensile Steel |
|---|---|
| Fork | Hi-Tensile Unicrown |
| Rims | Aluminum, 26x36H |
| Hubs |
Front: 14Gx36H, QR Rear: 14Gx36H, Nutted |
| Spokes | 14G Black, 36x36 |
| Tires | Vee Rubber Galaxy 26x2.1" |
| Bottom Bracket | Cartridge Bearing |
| Crankset | Shimano FC-TY301, 48/38/28T, XS-S:170, M-XL:175 |
| Shifters | Shimano Revo |
| Front Derailleur | Shimano Tourney, FD-TY510 |
| Rear Derailleur | Shimano Tourney, RD-TY300D |
| Cassette/Freewheel | Shimano MF-TZ500, 14-34T, 7-Speed |
| Chain | KMC Z8.3 |
| Brakes | Aluminum Linear Pull w/ABS System |
| Brake Levers | Aluminum Linear Pull, 2.5F |
| Handlebars | Aluminum Riser, 31.8mm, 660mm x 20mm |
| Tape/Grips | Kraton For Twist |
| Stem | KHS Aluminum Threadless 4-bolt, 31.8mm, XS-S:60mm, M-L:75mm, XL:90mm |
| Headset | Threadless 1-1/8” |
| Seatpost | KHS Aluminum Micro Adjust, 25.4mm |
| Saddle | KHS Sport |
| Pedals | Resin ATB Platform w/Boron Axle |
* Subject to change without notice.
